Registering LTI 1.3 Tool

Follow these steps to register the BibliU LTI 1.3 Tool:

1. In Canvas, click Admin → Site Admin

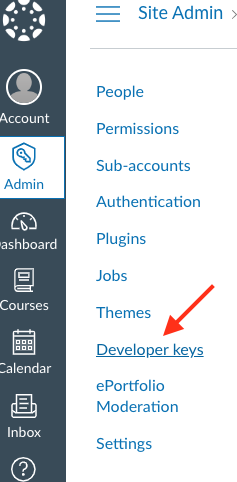

2. Click on Developer Keys



3. Click the + Developer Key Button → LTI Key



4. A form to fill some values will appear. Fill them in with the following details:

   1. Title: BibliU Integration
   2. Description: BibliU LTI 1.3 Integration
   3. Target Link URI: https://bibliu.com/users/lti
   4. OpenID Connect Initiation URL: https://bibliu.com/users/lti/initialise-login/[VALUE THAT BIBLIU WILL PROVIDE]
   5. JWK Method: Public JWK URL
   6. Public JWK URL: https://bibliu.com/users/lti/jwks/[VALUE THAT BIBLIU WILL PROVIDE]
   7. Redirect URIs: https://bibliu.com/users/lti

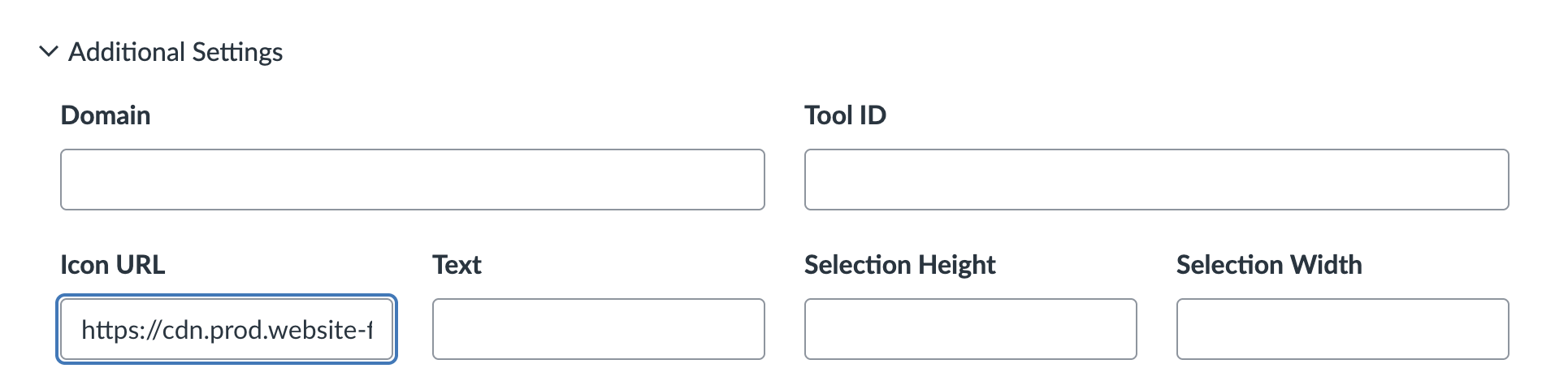

5. Under Additional Settings, in "Custom Fields" please place the following attribute:
   1. 1. lis_person_contact_email_primary=$Person.email.primary

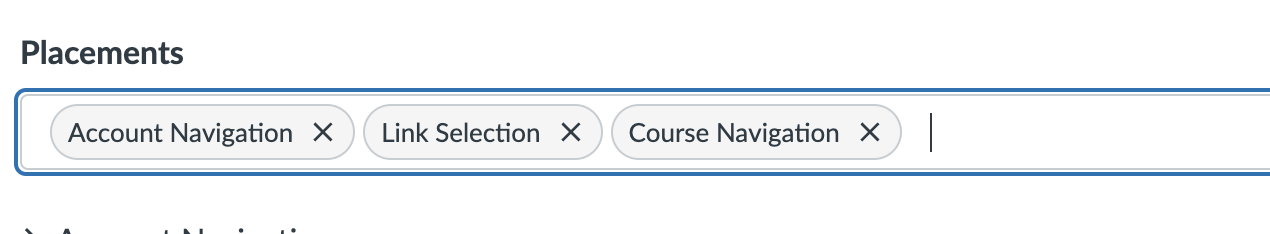

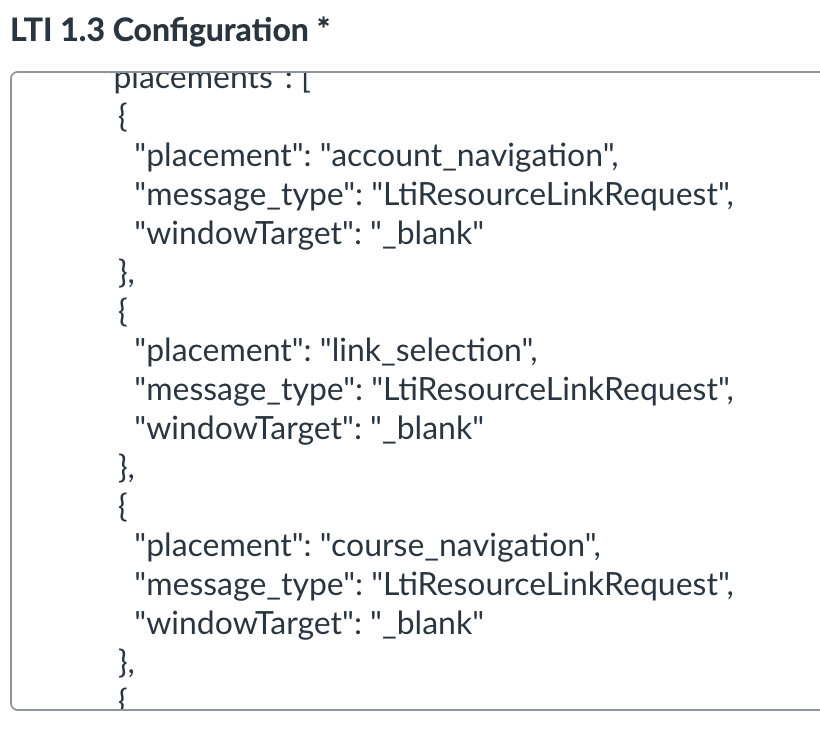

6. On Placements, select Account Navigation, Course Navigation and Link Selection. These are the placements we recommend, but there are many options for placements in Canvas. You can find more details here: Canvas Placements



7. Select on both options (Account Navigation and Link Selection) the Message Type LtiResourceLinkRequest



8. Click Save



After this steps, you have set up the BibliU LTI 1.3 Tool in your Canvas instance. You can now place LTI Links into your Courses.

BibliU will require you to send back to us a set of information to be able to configure the LTI integration on our end.

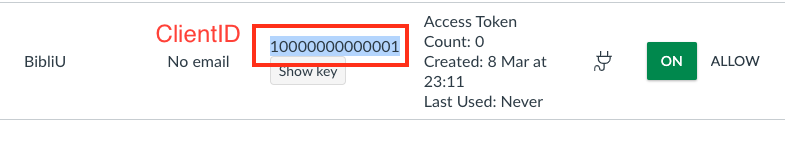

1. Make sure your new Developer Key is turned ON and copy the ClientID

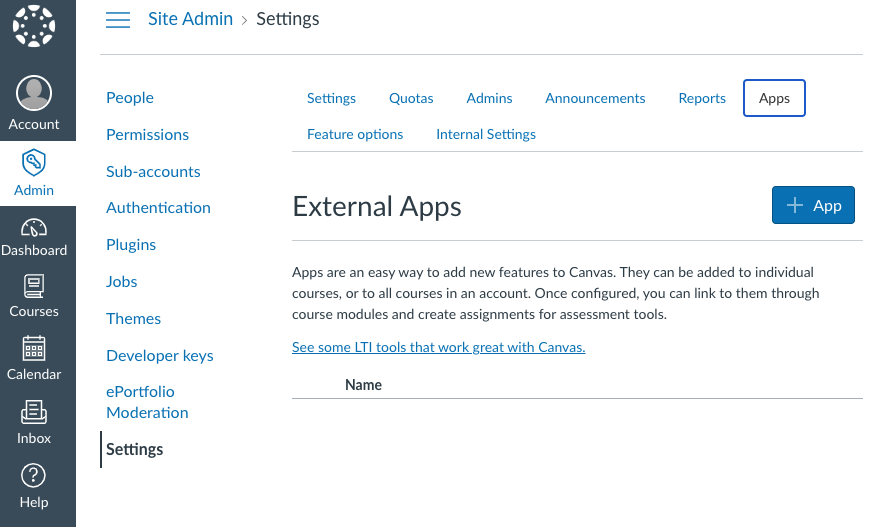

2. Navigate to Admin → Settings → Apps and click the +App Button



3. Choose By Client ID as Configuration Type



4. Paste the ClientID you copied on step 1 and install de App by clicking Install.

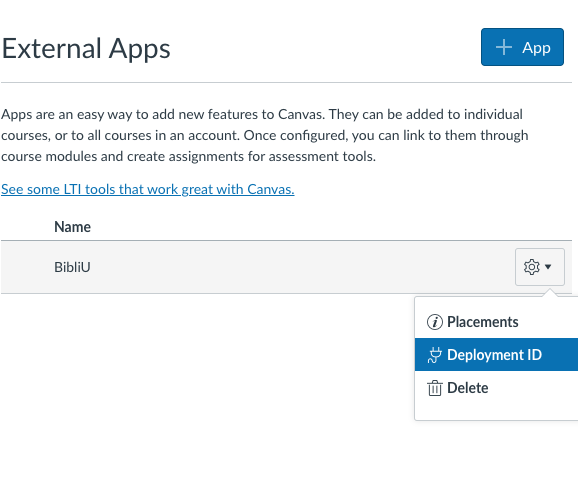

5. Retrieve the Deployment ID from the recently installed BibliU App.



6. You will need to send the ClientID, the DeploymentID and your Canvas LMS domain name to your BibliU Contact. For example:

   1. ClientID: 1000000001
   2. DeploymentId: 10:ead9267301e0bdd5480943418d5bdf53581d1943
   3. Canvas domain: canvas.mylmsdomain.com

7. BibliU will then configure this values on our end to finish up the integration.
